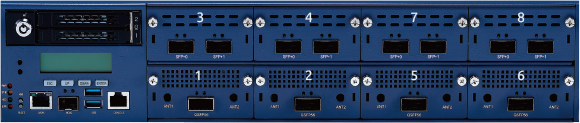

NSA 7150 Series

2U Rackmount Performance Appliance w/ Dual 3rd Gen Intel® Xeon® Scalable Processor and 8 x PCIe4 LAN Module Slots
  • Main Feature
  • Dual 3rd Gen Intel® Xeon® Scalable processor (socket P + 4189-pin)
  • Supports Intel® Optane™ Persistent Memory
  • 20 x DDR4 3200 ECC RDIMM/LRDIMM
  • 2 x 2.5” swappable SSD/HDD
  • 8 x PCIe4 LAN module slots
  • 1 x PCIe4 x16 low profile riser card
  • 1300W 1 + 1 CRPS redundant power supply
  • Supports OCP NIC 3.0
  • Supports IPMI 2.0 BMC (optional)
  • Supports Intel® QAT (NSA 7150A)
Add to Inquiry
Datasheet(PDF)

Barebone

NSA7150 (P/N: 10S00715000X0)
2U w/ Dual 3rd Gen Intel® Xeon® Scalable processor, w/ o QAT, LCM,
8 x LAN module slots

NSA7150A (P/N: 10S00715001X0)
2U w/ Dual 3rd Gen Intel® Xeon® Scalable processor, w/ QAT, LCM,
8 x LAN module slots


Model P/N Interface Type Port Number Bypass/ Segment Expansion Slot Location Slot
NI 184CX1W 2BS10184C04X0 i350AM4x2 PCIe x8 8 Copper 4 bypass None 3,4/7,8
NI 180CW 2BS10180C02X0 i350AM4x2 PCIe x8 8 Copper None None 3,4/7,8
NI 142CX1W 2BS10142C02X0 i350AM4x1 PCIe x8 4 Copper 2 bypass None 3,4/7,8
NI 140C-OS 2BS10140C00X0 i350AM4x1 PCIe x8 4 Copper None None 1,2/5,6
NI 142CX1-OS 2BS10142C00X0 i350AM4x1 PCIe x8 4 Copper 2 bypass None 1,2/5,6
NI 180C-OS 2BS10180C00X0 i350AM4x2 PCIe x8 8 Copper None None 1,2/5,6
NI 184CX1-OS 2BS10184C02X0 i350AM4x2 PCIe x8 8 Copper 4 bypass None 1,2/5,6
NX 120F-OS 2BS20120F00X0 XL710-BM2 PCIe x8 2 SFP+ None None 1,2/5,6
NX 140FW 2BS20140F06X0 XL710-BM1 PCIe x8 4 SFP+ None None 3,4/7,8
NX 140F-OS 2BS20140F02X0 XL710-BM1 PCIe x8 4 SFP+ None None 1,2/5,6
NX 140C2F2W 2BS20140F07X0 EZX710TM4 PCIe x8 2 Copper+ 2 SFP+ None None 3,4/7,8
NX 142FX1W 2BS20142F05X0 XL710-BM1 PCIe x8 4 SFP+ 2 bypass None 3,4/7,8
NX 142FX1W-LR 2BS20142F06X0 XL710-BM1 PCIe x8 4 SFP+ 2 bypass None 3,4/7,8
NX 142FX1-OS 2BS20142F01X0 XL710-BM1 PCIe x8 4 SFP+ 2 bypass None 1,2/5,6
NX 142FX1-LR-OS 2BS20142F02X0 XL710-BM1 PCIe x8 4 SFP+ 2 bypass None 1,2/5,6
NX 121FX1-OS 2BS20121F02X0 XL710-BM2 PCIe x8 2 SFP+ 1 bypass None 1,2/5,6
NX 121FX1-LR-OS 2BS20121F03X0 XL710-BM2 PCIe x8 2 SFP+ 1 bypass None 1,2/5,6
NV 120FW 2BS50120F01X0 XXV710-AM2 PCIe x8 2 SPF28 None None 3,4/7,8
NQ 120FW 2BS40120F01X0 XL710-BM2 PCIe x8 2 QSFP+ None None 3,4/7,8
NC 120FMS4W 2BS30012002X0 MT28808A0-FCCF-EV PCIe x8 2 QSFP28 None None 3,4/7,8
NC 120FIS4-OS 2BS30012001X0 EZE810CAM2 PCIe x16 2 QSFP28 None None 1,2/5,6
NL 110FM-OS 2BS60011000X0 MT28924A0-NCCF-VE PCIe x16 1 QSFP28/56 None None 1,2/5,6
